Flush Lock Seam Panel
Metalbenz fabricates an interlocking and overlapping flat sheet panel known as a ‘flush lock’ panel. This panel is a variation on the ‘flat lock’ panel.
Like the flat lock panel, it is flat with 30mm – 40mm folds around the perimeter of the panel, but the flush lock panel differs as the folds on two sides of the panel are recessed by the thickness of the material itself. These folds are formed simply to interlock and overlap with each other, so that the end visual result is a slim line where the joint is located. With the two recessed side panels, a shadow gap of 2mm – 10mm can be achieved. This is technically referred to as a ‘ship-lap’ panel, where the face of the panel is flush.

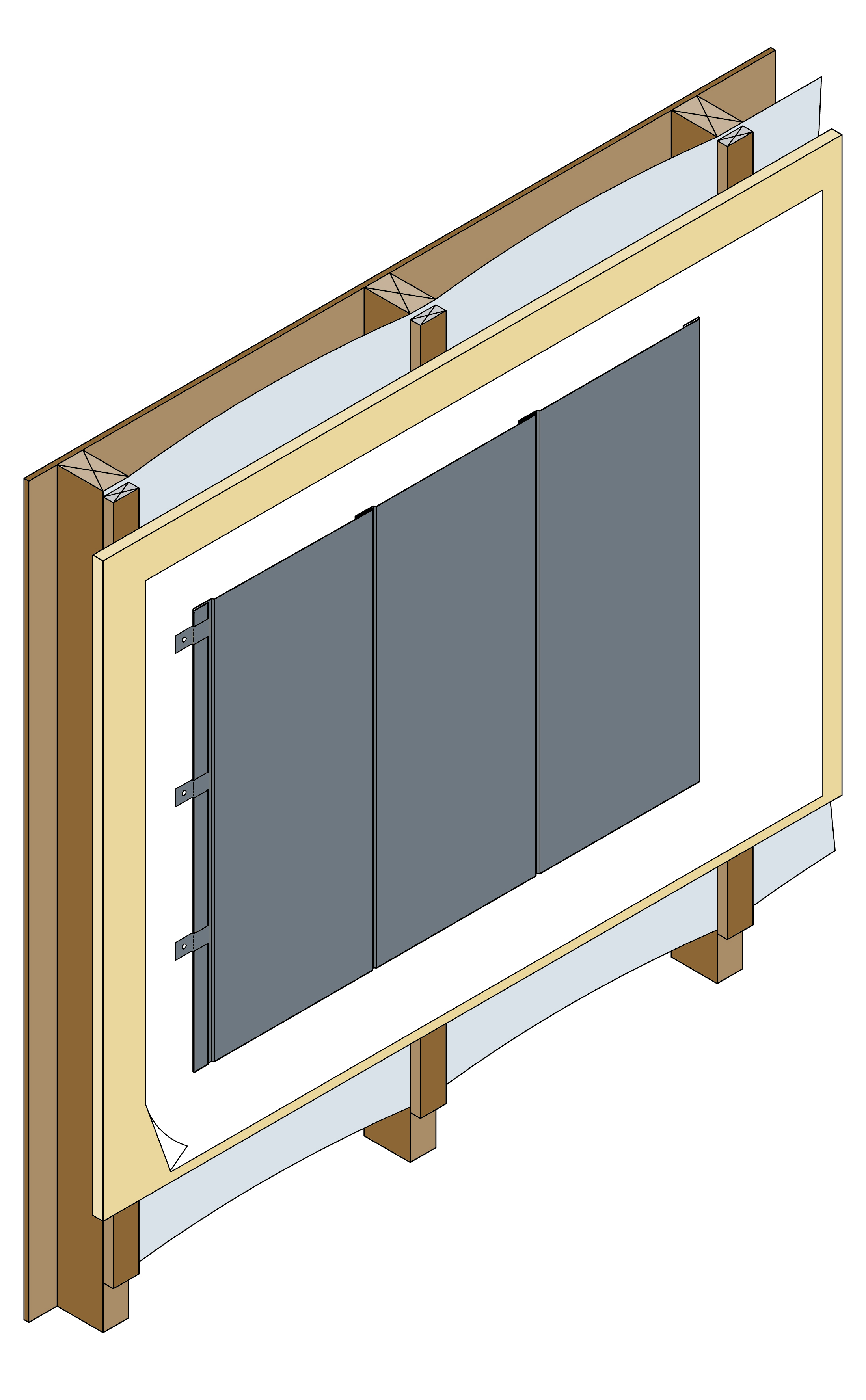

Each panel is installed sequentially with the lower fold of each panel interlocking with the upper fold of the panel below. The upper and side panels are attached to the structure with clips which are concealed by the next overlapping panel.
- Flush lock seam panels can be large squares that are more likely used in modern contemporary buildings
- Elegant solution as the method creates joints that appear as slim shadow lines

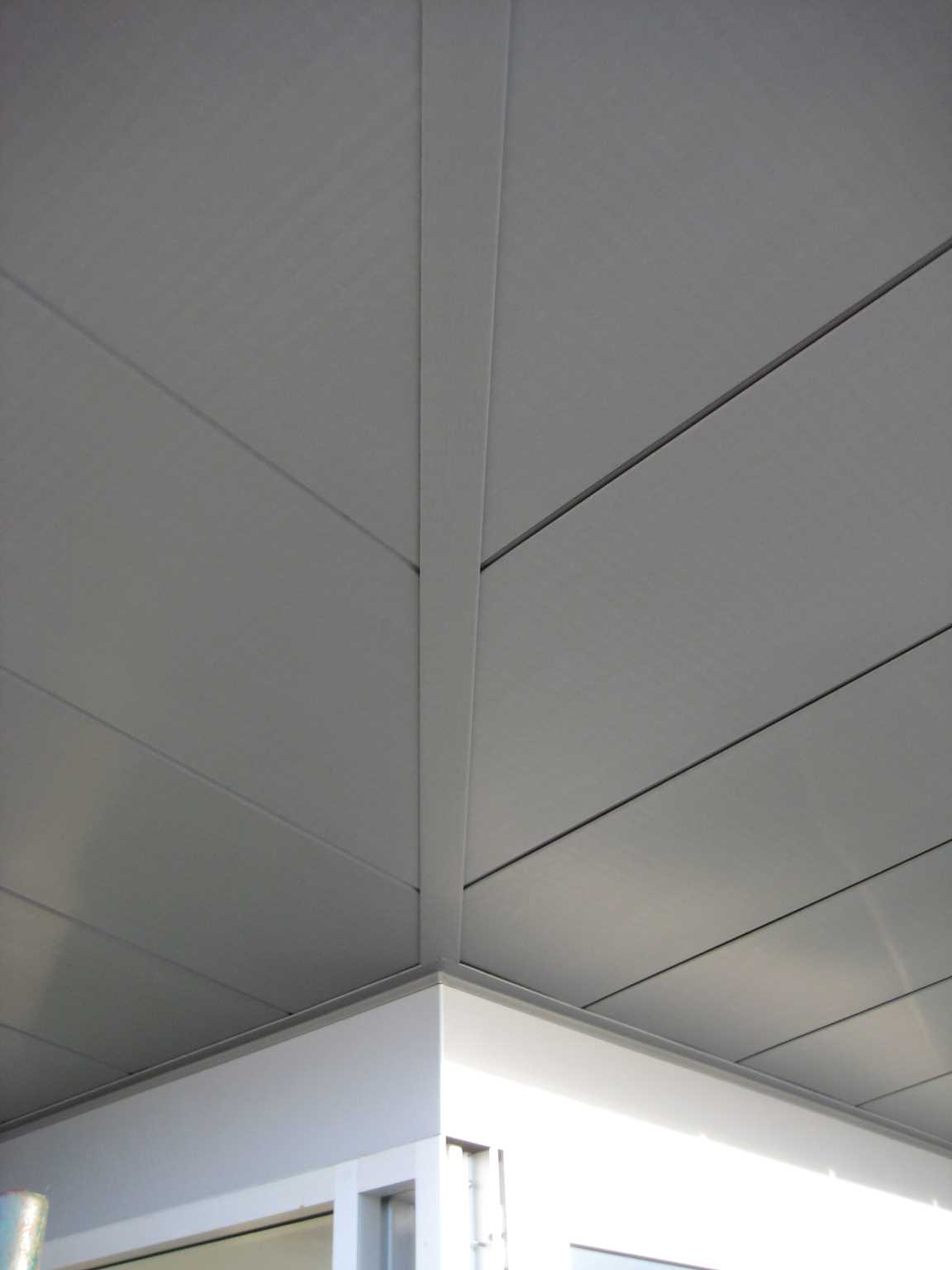

- This method is very popular for walls, soffits and curves
Panel Width
200mm – 400mm.
Panel Height
Flat.
Panel Length
Varies with width of material.
Variations
Horizontal, vertical, diagonal, brick pattern, curved.
